Serial Communications with Arduino Part 2 - Software Serial Ports

 Last recently, I put up a short post on how we can use Arduino to read data from a device. Cunningly, I made the process so simple (mainly for myself) that I neglected to actually use an Arduino.

So, in this post I will remedy that by providing an example on how to read data from a device using serial communication at the start, then move on to writing to the serial port.

In the last post, I gave an example of how you can connect a USB to TTL adapter to a device and read its data. This time round, we are going to use the UNO R3 to act as our USB to serial adapter. To do this, we are going to be using the following

• 1x    breadboard
• 1x    Arduino UNO R3
• 1x Neo-6M/GY-GPS6MV2 GPS Module
• 1x CH340 USB to TTL adapter
• Jumper wires

The proposition is quite simple; we want to send the output of the GPS module to the board over a serial port. Unfortunately, I have not found a way to simply connect it to the TX/RX pins on the board itself and have it output data. So, to accomplish this we need to create a second serial port to handle the incoming stream of information from the GPS module itself and we need to create that port in software.

To do this, we are going to have to use the Software Serial Library.:

1:  #include "SoftwareSerial.h"
2:  SoftwareSerial ss(8, 9);

The first line references the library we need to use in this program. If you get an error when compiling this code, you might want to check that you have this library installed from within the Library Manager.

The second line is simply us creating a new software serial port called "ss", the numbers following represent the RX and TX pins on the board.

Next, we have to set up our ports, this should be familiar to anyone who has been using the Serial Monitor from within the Arduino IDE:

1:  void setup() {
2:   // put your setup code here, to run once:
3:   Serial.begin(9600);
4:   ss.begin(9600);
5:  }

Here we can see that on line 3 the hardware serial port is started with a baud rate of 9600 - this is the speed at which the port is reading/writing at. Line 4 is almost exactly the same, however this is the software serial port that is being started this time, note that we are also starting it at the same baud rate.

From reading up on using this library, it seemed that 9600 was the highest baud rate to go for and still have a stable connection. The GPS module can work up to 115200 baud, however when I configured the serial ports to use this speed, nothing happened.

Next up, we have the main executing of the code itself. We read the data leaving the GPS module on its TX port on to the boards hardware RX port and vice versa:

1:  void loop() {
2:   // put your main code here, to run repeatedly:
3:   if (ss.available())
4:    Serial.write(ss.read());
5:   if (Serial.available())
6:    ss.write(Serial.read());
7:  }

Line 3 checks to see if the software serial port is available, if it is then the hardware serial port then writes whatever the software serial port is reading on line 4.

Line 5 does the opposite, if the hardware serial port is available the software serial port writes whatever the hardware serial port is reading - which happens to always be whatever the software serial port is reading due to the structure that we have created.

Think of the above as an exchange - the hardware serial port is empty until it reads the incoming message from the software serial port. Once it has that, then both ports will have the same message.

Make sure you have your serial monitor running when you upload the code, you should see something like this:

The full listing for the code will be at the bottom of this post.

At the start of this article I mentioned that I used a CH340 USB to TTL adapter for debugging. This is because I had a fairly hard time getting the software serial port actually doing what I wanted it to do, quite a few of the articles I had read on the subject provided examples that simply did not work so I began to think my GPS module had become damaged.

So, to verify that the GPS module was working whilst the board was running the code, I connected it in series with the wires going from the GPS module to the board.

This let me run putty to make sure that I was getting something from the GPS module itself and make sure there was an incoming message for the board to do something with. It was actually quite helpful to do this while figuring out my problem.

The setup, minus the USB to TTL adapter, looks like this:

If you are trying this out for yourself, then hopefully you are seeing a nice barrage of NMEA sentences scrolling across your serial monitor.

However, if you are seeing nothing, then try swapping your RX/TX pins on the board itself. You might have gotten them mixed up - I certainly did a couple of times.

SoftwareSerial is not the only library available that can do the same thing. Another, very popular library you can install is AltSoftSerial. Syntactically, it is almost identical to SoftwareSerial and supports a wide arrange of MCU's and development boards. You can also use a mixture of different libraries to give yourself multiple serial ports to work with, should you need to, for example if you had a number of devices that provided data in the same way as the GPS module you will need to have more than one serial port configured to a set of pins. That way you will have an uninterrupted flow of data from each device on its own serial port.

So what does all of this mean? Well essentially it is just a description of how you can easily set up a couple of serial ports to share data. But in this specific context, where could we take the build next? We are using a GPS module and we can see the NMEA sentences that it is receiving. We also know that each sentence begins with a $, so we could easily read the sentences into an array or object in order to process them further.

From looking at the output, we can see that there are six distinct types of sentence being received, or at least the module is trying to populate the contents of six sentences with data from the GPS constellation, with that knowledge we might be able to do something useful with that data...

The full code listing for used for this article is as follows:

1:  #include "SoftwareSerial.h"
2:
3:  SoftwareSerial ss(8, 9);
4:
5:  void setup() {
6:   // put your setup code here, to run once:
7:   Serial.begin(9600);
8:   ss.begin(9600);
9:  }
10:
11:  void loop() {
12:   // put your main code here, to run repeatedly:
13:   if (ss.available())
14:    Serial.write(ss.read());
15:   if (Serial.available())
16:    ss.write(Serial.read());
17:  }

Serial Communications With Arduino

 This article is going to cover the topic of serial communication between an Arduino and another device. There are plenty of very good examples in the Arduino IDE that help you get to grips with the basics, but for this one we are going to do something that could actually be useful. To do this we will be using the following:

• Neo-6M/GY-GPS6MV2 GPS Module
• Arduino 2650 MEGA
• CH340E USB to TTL adapter
• breadboard

To start off with, we can illustrate a very simple example of serial communication taking place. The GPS module we have here is a self contained unit, once it is powered up and has its antenna attached, it will start to look for satellites and begin printing out its status via serial communication. I don't need to do anything at all for this to happen, however in order to read this data, we must connect a TTL/serial terminal to the module itself.

USB to TTL on left

This is where the USB to TTL module comes in to play. We can attach the serial port on this device to the serial port on the GPS module and connect the lot up to a computer using a USB cable. Once done, you will be able to use a terminal to connect to the serial port and view the raw GPS data in the form of NMEA sentences.

So, lets get started on the easy part of connecting the USB to TTL up to the GPS module. If you don't already have pins installed on these modules, go ahead and solder them in now, once done you want to put them side by side on the breadboard, its probably a good idea to use the outer most pins on the edge to seat these components.

Before doing anything else, lets make sure that the USB to TTL adapter works, and that you can use it. To do this, connect a USB cable to it and your computer, if this is the first time you are doing this your OS may tell you it is being installed, so wait for that to take place. If not, then it should just give you the noise to tell you it has been connected.

We can verify the connection by looking at the available ports your OS has available. On Windows, there are a couple of ways to do this. The best way is to go into Device Manager and look under "Ports, COM & LPT". You will see your adapter listed here if it is present, mine looks like this:

USB to TTL adapter highlighted

Note that port number down, it probably wont change and you will need it later. For now, we can disconnect the USB cable and get to work setting this up.

We need to power the GPS module, it is 5v tolerant but for right now lets run it at 3.3v - we can get this from our USB connection. Simple connect a wire between the 3V3 pin on the USB adapter and the VCC pin on the GPS module. Connect a ground wire accordingly.

Next, we need to connect the TX and RX pins to one another. When you are trying to transmit data between devices like this you need to connect these pins to their opposite.

This means you connect RX to TX and TX to RX.

Doing so means that the device transmitting is always transmitting to a connection that is receiving and vice versa. So lets connect the TX and RX pins together, take a wire and connect TXD on the USB adapter to RX on the GPS module. Next connect the RXD pin on the USB adapter to the TX pin on the GPS module.

You need to be careful that you do not accidentally connect one of the serial pins to a power supply by mistake, this could damage your components.

Once you are happy with your connections, you could have something like this:

All we need to do now is hook up the USB cable and connect to the serial port. The best way to do this if you are using Windows is to get hold of PuTTY. Its a fantastic, free SSH and Telnet client that pretty much the entire world uses I think, you can download it from here.

So, to get this up and running, open up PuTTY. You will be greeted with a screen like this:

Make sure you have Session selected under Categories on the left, this is the highlighted field in the top left. Then select the Serial radio button, highlighted on the right. You will need to enter your COM port number here, I have entered 12 as this is the port number that has been assigned. Once I am sure everything has been done, I go ahead and click on Open.

And hey presto, you start getting GPS data back in the form of NMEA sentences, just like this:

This data will keep scrolling for as long as you keep power flowing through this circuit. As time goes by, the module will receive more and more data from the GPS network and all of those missing fields will be populated.

And all of this has been achieved without writing a single line of code.

So how useful is this? Well, in general terms, if you have a device that pins or pads designated as "UART" or "Serial", then you stand a very good chance of hooking them up to something like PuTTY to see what, if anything, is being sent out of the device. This can be really useful if you have a faulty device, sometimes they write out the error state on a serial port which can be read from another device. You might even be able to write data back over that connection - for example I have a NAS that is faulty at the current time, I have connected it up in this way to see if there is a specific error message, or any other info being written to the port. Unfortunately in this case, nothing useful turned up - but I did discover that I can flash the device using ICMP - which will be really useful once I figure out how to do it.

But in the context of the module used in the example above? Well, the data we received from it were standard NMEA sentences. To a human, they don't mean anything, we cannot really decode them without help. So with some code, we can consume those sentences and turn them into data that we can use easily, like coordinates and other measurements that we can easily comprehend.

But this is a topic for another time...

Using Transistors As a Switch with Arduino

 Recently, I have had reason to look into switches and how they can work with Arduino, and other popular MCU's.

This is part of a larger piece of investigation that is looking into buttons, sliders, potentiometers, switches etc as inputs whilst I think about how to make my own keyboard.

Of course, everyone has heard of a transistor. We all have some form of awareness as to how important they are with regards to the evolution of technology and computing. But what is a transistor really? Anyone with a background, or an interest in computing will probably tell you that they are used to calculate things on a CPU, and they are correct - but this isnt what transistors are limited to.

I am not going to go into the science of transistors here or how they work on a microelectronic level, there are plenty of other blogs and articles who have done a much better job than I could ever do. What I am aiming to do here is to give a quick guide on how to pretty much use a transistor as a switch, how to connect one up and how to control one in the code.

Transistors basically can do two things; they act as switches and they can help amplify signals. And they do this by controlling the current flowing through them. However today, I am only going to be talking about how they can be used as a switch in this article. You may be asking why would you want to use a transistor as a switch? There are no physical controls, so you would need to programmatically control it - and that's the beauty of using a transistor as a switch.

One really good example of how this can be used could be this - you have a light somewhere that you want to turn on when it gets dark. You build a circuit with a lamp, and a light sensor. When the state of the light sensor reaches a certain point, you then want the lamp to light up. So you can use a transistor to act as the switch to do this.

Naturally, all of this would require an MCU of some type as well as some code, but it really is a nice little example of a potential application.

One of the neat features of using a transistor as a switch is, depending on your transistor, that you may be able to switch on a circuit of a much higher voltage. This is because a lot of transistors are capable of handling a lot more voltage because of their amplification abilities.

Transistors typically come with three pins, which are cryptically called:

• Collector: This is normally the current you are trying to control.
• Base: This is normally the current you use for the switch. It controls the bias on the transistor.
• Emitter: This normally goes to ground.

For the examples below, I will be using the following components:

• 2x 1 kohm resistors
• 1x red LED
• 1x PN2222A transistor
• 1x Pro-Micro/Arduino Nano MCU

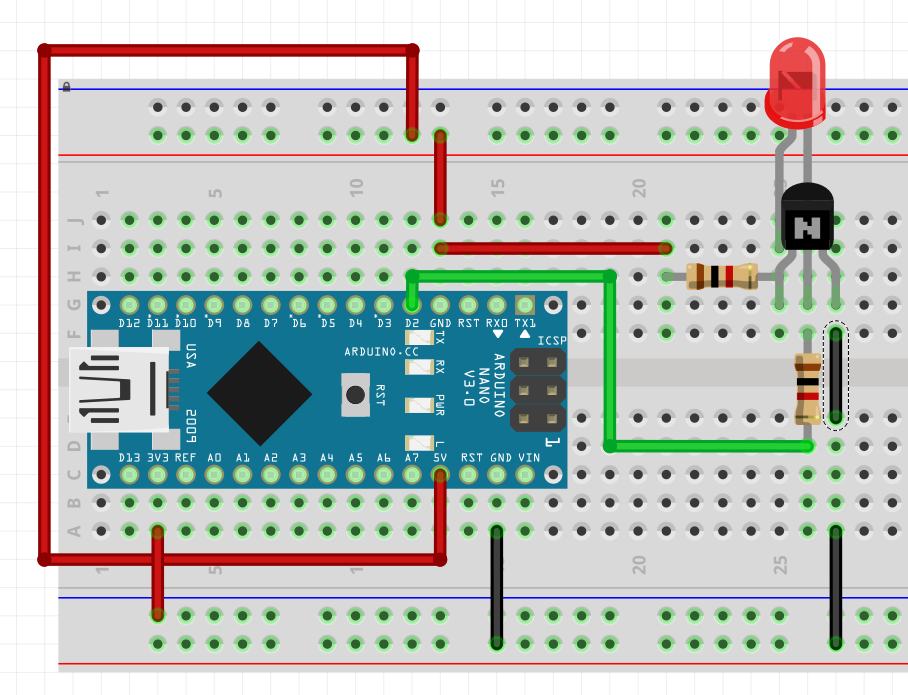

Here is an example diagram to help visualise this:

On this breadboard we have a transistor acting as a switch to control the LED. When 5 volts is applied to the power rail, the LED will light up, if I remove the transistor from the circuit then apply power, the LED would not light up.

Why is this? Well, to explain this, lets look at the names of the pins in relation to the connections in the diagram.

Starting from left to right, we have the collector first on pin 1. This has the LED connected to it, with a 1K resistor running to 5 volts. This part of the circuit represents the current we are trying to control.

The middle pin, pin 2 - we have the base. This is the switch itself, when enough current is passing through it, the switch is closed. When there is insufficient, or zero current flowing through it, the switch is open. This controls the flow of current through the collector - this means when the switch is closed, current flows through the collector and the LED lights.

On the right, we have the third pin, which is tied to ground.

If you construct this circuit, there are two ways to test it. Firstly, remove the transistor from the circuit and apply power - the LED should be off. If it is on, then you are passing power to the LED without the transistor controlling it.

Second, disconnect power from the base, this should turn off the LED. If it doesnt, then again - you are probably passing power to the LED outside of the control of the LED.

Now, the above shows a transistor controlling current to an LED using 5 volts, but remember when I said they can also be used to control the current in circuits that require a higher voltage? We can create an example of this as well, but this time using 3.3 volts to control the transistor whilst still using 5 volts to light the LED:

All that has changed in this example is that we are now applying 3.3 volts to the lower power rail as well as 5 volts to the upper power rail. When the power is connected, the LED will light up.

One point to note here is that using a transistor in this setting is rather pointless. All this circuit does is provide power to an LED. This can lead to some confusion  when building such a circuit for testing or educational purposes.

So how about we create the classic "blink", but this time using our transistor? To do this, we are going to need to use a micro controller, for this example I am going to use a Pro-Micro/Arduino Nano using 5 volts. This means we can keep our initial breadboard design the same, more or less.

All we need to do is alter the way the transistor is biased. Instead of simply being powered directly from the power rail, we are going to connect it to a GPIO pin:

This is the same circuit as the one I initially built. It is orientated differently to accommodate its one difference, and that difference is how we are controlling the base on the transistor.

Previously, we were simply providing it with current, which caused the LED to be illuminated for as long as power was available. However in this example, we have connected the base to pin 2 on the Nano. Unless you make it happen, pin 2 will not be high, which means if you create this circuit and power it, the LED will not light up.

So, on to the the classic "blink", to achieve this we need to write a couple of lines of code, the whole thing is this:

1 2 3 4 5 6 7 8 9 10 11 12 13

void setup() { // put your setup code here, to run once: pinMode(2, OUTPUT); } void loop() { // put your main code here, to run repeatedly: digitalWrite(2, HIGH); delay(1000); digitalWrite(2, LOW); delay(1000); }

The setup for this is simple, we just need to define the pin we are going to use to control the base. In the diagram we have it connected to pin 2, so that is what we define here. We need this to be used for output, as we will be sending a signal to the transistor.

The main body of the program should be familiar to anyone who has tried out the blink sketch that is used to test out various developer boards. We simply take pin 2 high for a couple of seconds before sending it low for the same amount of time.

This basically opens and closes the transistor as if it were a switch, if you try this out for yourselves, you will see the LED blinking on and off every couple of seconds.

Now, lets get in to some specific points that are worth mentioning:

Using resistors is essential. Not putting a resistor across a transistor in the way I have shown above can often cause your transistor to melt, it certainly did for me unless the ones I had were also defective. It is important to note that the resistors you use should be of the appropriate resistance for your load - it wont always be 1 kOhm.

The examples above use an Arduino Nano, but everything here is also compatible with the cheaper Pro-Micro developer board. The only difference between the two boards is that one provides a 3.3 volt rail and the other doesn't.

Using a GPIO pin to control the biasing of a transistor is the win here. The state of the transistor can be governed by the state of a separate sensor(s), the result of a programmatical state or pretty much anything that is capable of changing the state of that pin.

For me, it was fun but a little frustrating learning about how transistors work. Writing this blog entry has been part of my learning process and perhaps someone will find it useful in the future themselves :)

Creating a 5 Volt DC Power Supply

 Just over a year ago I bought myself a robotics experiment kit from Amazon to play with during some downtime.

Naturally, a lot of us have had a lot of spare time (sort of) on our hands lately. So this gave me the opportunity to get this kit out and start playing around.

On opening it up, I discovered that it wasn't just a robotics kit, it was actually an Arduino based experiments kit. For those of you who don't know, Arduino itself is an open source hardware electronics platform. The open source bit is how their kit works, naturally you need to buy the hardware itself - or if you are skilled enough, you can make it yourself from the schematics and tools Arduino provides.

You can get more information about Arduino gear on their site as well as browse their store. I need to point out that I am in no way affiliated with Arduino, or get anything for writing about them.

In fact, it is often cheaper to browse eBay for Arduino clone boards than it is to buy the official ones, but that is a story for another day.

Now, back to the point. Once I had finished all the experiments described in the kit, I decided to try my hand at building some actual devices for myself. Of course at this point, I wasn't quite sure what to build, but I knew one thing, what ever it is I decided to build, it would need to be powered in some way.

One of the interesting things I discovered working with these electronics is that pretty much everything, including consumer electronics, runs from a DC power source. This means when you are building something, powering it from a wall outlet or a battery is usually interchangeable. The work you have to put in is how you condition this power source (for want of a better phrase).

To do this, we need to use a voltage regulator. A voltage regulator is an electronics component that is designed to control the forward flow of power from a power source, like a USB lead or a battery, onwards to your circuit. Wikipedia has a very good article on the subject here if you are a newbie like me and want to learn some more. In their simplest form, they will have three pins, voltage in, voltage out and a ground pin.

When building my own power supply, I wanted to use the same voltage regulator that came with the micro controller that came in my experiments kit - this was a Mega 2650. In order to find out where the voltage regulator might be (don't forget, my knowledge of electronics is very basic at this point) I referred to the boards schematics. I don't really understand how to read these very well at this point, but was easily able to see where the power for the board comes in, you can take a look at them here the power input is in the top left hand corner. After googling the name of all the components, I found what I was looking for, the MC33269D 5. This little guy is intended to take a DC current through the barrel connector and drop it down to 5 volts DC for the board to operate. Most people will never use this method though, as most of us will be powering the device via USB, which will also give you 5 volts DC.

However, when I went to look for this component on my board, it was missing. Mine seems to come from a company called Elegoo, which are a good place to get hobby electronics kit, so wasn't a cheap clone. In its place, we have an AMS1117-5, after a quick search I discovered that this is also a 5 volt DC regulator, I also found the same component on a few other boards I have. So it made sense to build my power supply around this component, it is cheap and readily available from places like eBay, Amazon as well as Mouser etc.

Another new thing for this bit of work that I am using is a tool to help me plan and design my build. Previously, if I was working on a largish experiment on the breadboard the most work I would put in to designing something was maybe a scribble in a notepad. That's fine when you can change any wire or component when ever you like, but when you are soldering things down you want to be 100% sure that you are putting the right thing in the right place and its orientated in the right way. Otherwise you can ruin a whole build and you may need to start from scratch... This is the voice of experience talking.

When looking for examples of Arduino circuits, you will often run in to these wonderful little images that simulate the layout on a breadboard. I wanted to use this in my posts going forwards, so I tracked down the tool used to make them. Again, I am not affiliated with this company, and I dont get anything from them and you need to pay for this tool, but it is available from Fritzing. In my humble opinion, the license is very cheap for what you get and for those who are inclined, you can download the source for free and compile it yourself. However I am not going to go into that here. This isnt going to be a tutorial on how to use Fritzing either, its a really easy to use package and is essentially drag and drop. As a tool for helping me with my little builds, it has been extremely helpful and has enabled me to learn more about what it is I am doing.

So, lets get started by creating a new design and putting a voltage regulator on it. Fritzing doesnt have a dedicated symbol for the AMS1117, so a search for this will give you pretty much nothing you can use. However if you search for 1117, you will get something called a "V_REG_LD1117VXX". This will do for the purposes of design, layout and even construction, depending on how you build this. The LD1117 precedes the AMS117, so lets get this out on to the board:

Before we go any further, we need to take a step back and address reality here for a second. If you found this article after looking for ways to create a 5 volt DC power supply for real then we need to talk about the package the AMS1117 family comes in. For the sake of illustration, I am using a TO-220 package to represent the voltage regulator. In reality, the AMS1117 family are all in the SOT-23 package (to the best of my knowledge). This is a lot smaller than the one pictured here and while it is possible to solder one of these by hand to some 2.54mm pitch protoboard, you are not going to be able to use one on a breadboard easily.

However, you can get adapters that will allow you to mount pins to a SOT-23 package, these are basically SOT-23 to DIP adapter plates. You can get them from all the major stockists online, but I found the cheapest place to get them so far is eBay, an example of some can be found here. This is what an AMS1117-5 looks like when it has been installed to one of these adapters, you can see how this will make things easier:

AMS117-5 next to SOT 23 to DIP adapter

You can use some flux to hold the regulator in place for soldering.

Try to solder one of the outer pins first. This will make the rest easier.

To finish off, you just need to add some 2.54mm pitch header pins and you are done. An easy way to solder components like this is to use a breadboard for support:

Some extra headers are laid flat at the other end for support.

Get some flux on and get one of the pins soldered into place, you can make sure it is square here before continuing to solder the remaining pins. Don't worry about getting it done perfectly at this point, we don't want the plastic on the headers to melt.

If you need to, go back over the joints to make sure they are even and then you are done. You should end up with something like this:

If this is the first time you have done something like this - well done, you just made your first very own component! You can now go on and use this in your own breadboarding as a 5v DC voltage regulator!

Now, back to the design. I need to make a few changes here to the symbols properties in order to make it more visually relevant to the build. The changes I make are as follows:

Now we need to push some power into this, you could assume that it is coming from a 9 volt battery, such as a PP9. Technically, you could connect the plus and minus pins from the battery directly to the battery and it could output a 5 volt supply, however that's not really how it works. We need to get a few more components in there before we can actually start using this. To start with, we want to make sure that power cant come back through the circuit and damage the battery - or whatever power source you are using. So we need to stick a diode between the battery's cathode, positive line, and the forward flow to the voltage regulator. A diode is essentially a one way gate, a current can flow through it one way, but not the other. This makes it ideal for protecting your power source.

With this done, I need to add in some capacitors. If you take a look at the NCP1117-5 datasheet, which is also very similar to the AMS117 family, you can see a breakdown of the output capacitance vs the  equivalent series resistance (ESR). Output capacitance here refers to the capacitors we need to put in to the circuit as power leaves the voltage regulator and from looking at the graphs on page six of the datasheet, we can see that a 100uf electrolytic capacitor flowing to a 100nf ceramic capacitor will provide what we need. This will help smooth out the flow of power as it moves through the circuit - I am also going to do the same thing as power goes in to the voltage regulator as well for the same reason.

Next up is to simply add something in to indicate that there is power running through the circuit, this can easily be done with a 1k resistor and a red LED. The completed breadboard could look something like this:

Naturally, this probably isnt the best way to illustrate the layout. I am still getting used to the tool, but it certainly makes you think about what you are doing before you do it and why you are doing it. For the above to work, you simply need to provide a DC power source greater than 5 volts on one end. The LED will light up to show the circuit is working, to test it you can get your meter out and measure the incoming supply before it hits the voltage regulator to see what is being fed into it. The design above ends in a screw terminal providing both positive and negative, you can measure here as well to see that you get a steady 5 volts, or there about.

Don't worry if it is slightly under or over, what we need to check is the stability of the voltage. If you are seriously over or under 5 volts, then it is highly likely your regulator is either broken, or an incredibly poor quality copy.

Now, if you want to, you can go ahead and build this on a piece of protoboard, but - before you do, why not model that in Fritzing as well? You can actually design on protoboards of different types in this application as well as use a breadboard, so if you are like me, you can design what you want on screen first before you commit it to the board. As long as it has been designed correctly - which you test out on the breadboard first - all you need to do is make a physical copy. Its also good for documenting what you have done if you commit your work to source control.

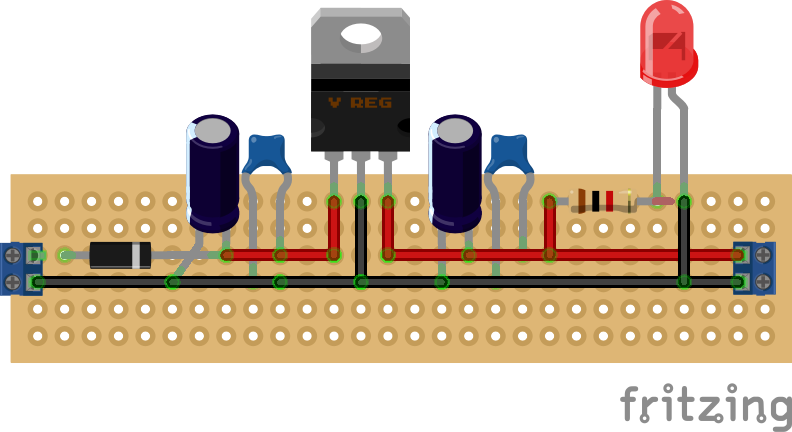

The protoboard version of this build could look like this:

The board I ended up making looked like this:

When designing the protoboard version in software, I specifically used the same size and layout that I have for in my collection of physical protoboards. My soldering isnt great, neither is my use of space, layout etc. Also, please note that I didn't install the LED, despite putting the resistor for it in place.

However, this works. I have feed it up to 10 volts so far and it has maintained a steady 5v DC with very little heat. This is a relatively small build, if you look at the photo this is being propped up by a pen, the whole board is about half the size of the pen, so it gives you some idea of scale.

But, it wont stop here. There are a couple of improvements that I can think of already, such as adding a switch. It would be good to see how small I can get this as well.

One interesting thing to note about this design is that you can swap out the voltage regulator for the 3.3 volt version and it will still work. You don't need to change the capacitors. I guess you could probably make a switched power supply that could let you select either 5 or 3.3 volts.
